Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
FunctionEscape route lighting/signage
Conductor cross section2.5mm²
Mounting methodWall surface mounted
Protection classII
Colour housingWhite
Width110mm
Lamp holderOther
Outer diameter-mm
Connection typeOther
Voltage typeAC
Type of indicatorOnly single-sided
Power supply systemPeripheral (individual battery)
Length210mm
Type of control gearLED operating device current-controlled
Built-in width-mm
Luminaire with limited surface temperature, sign "D“No
Built-in diameter-mm
Material coverPlastic, opal
Lamp typeLED not exchangeable
Height/depth41mm
Number of lighting heads1
Built-in length-mm
Wiring systemContinuous circuit/emergency circuit
Battery qualityNiCd
With light sourceYes
Nominal voltage230 - 230V
Degree of protection (IP)IP42
Suitable for labelling typeSticker
Impact strengthIK07
Number of poles5
Suitable for number of lamps-
Material housingPlastic
Monitoring equipmentNone
With remote switch connectionNo
Recognition distance-m
Rated life time L70/B10 at 25 °C-h
Rated luminous flux according to IEC 62722-2-1350lm
Rated life time L80/B10 at 25 °C-h
Rated life time L90/B50 at 25 °C69000h
With pictogramNo
Rated life time L80/B50 at 25 °C-h
Rated ambient temperature according to IEC62722-2-1- - -°C
Rated life time L70/B50 at 25 °C209000h
LED nominal current at constant current150 - 150mA
Light distributorDiffuser lens/optic/panel
Energy efficiency class of the built-in lampA++, A+, A (LED)
Rated life time L90/B10 at 25 °C-h
Luminous flux in standby mode100lm
Max. system power35W
Colour temperature5700 - 5700K
Power factor-
Nominal operation time1 - 1h
Built-in height/depth-mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

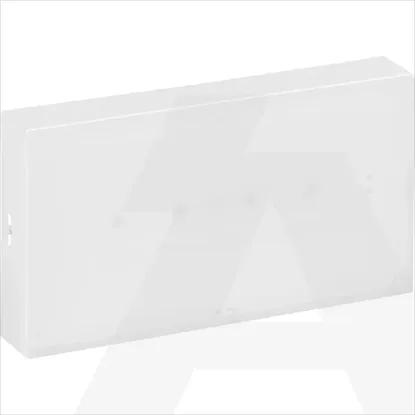

661634 | URAONE IP42 IK7 1H350LM NI-CD
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Function
Escape route lighting/signage
Conductor cross section
2.5mm²
Mounting method
Wall surface mounted
Protection class
II
Colour housing
White
Width
110mm
Lamp holder
Other
Outer diameter
-mm
Connection type
Other
Voltage type
AC
Type of indicator
Only single-sided
Power supply system
Peripheral (individual battery)
Length
210mm
Type of control gear
LED operating device current-controlled
Built-in width
-mm
Luminaire with limited surface temperature, sign "D“
Built-in diameter
-mm
Material cover
Plastic, opal
Lamp type
LED not exchangeable
Height/depth
41mm
Number of lighting heads
1
Built-in length
-mm
Wiring system
Continuous circuit/emergency circuit
Battery quality
NiCd
With light source
Nominal voltage
230 .. 230V
Degree of protection (IP)
IP42
Suitable for labelling type
Sticker
Impact strength
IK07
Number of poles
5
Suitable for number of lamps
-
Material housing
Plastic
Monitoring equipment
None
With remote switch connection
Recognition distance
-m
Rated life time L70/B10 at 25 °C
-h
Rated luminous flux according to IEC 62722-2-1
350lm
Rated life time L80/B10 at 25 °C
-h
Rated life time L90/B50 at 25 °C
69000h
With pictogram
Rated life time L80/B50 at 25 °C
-h
Rated ambient temperature according to IEC62722-2-1
- .. -°C
Rated life time L70/B50 at 25 °C
209000h
LED nominal current at constant current
150 .. 150mA
Light distributor
Diffuser lens/optic/panel
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L90/B10 at 25 °C
-h
Luminous flux in standby mode
100lm
Max. system power
35W
Colour temperature
5700 .. 5700K
Power factor
-
Nominal operation time
1 .. 1h
Built-in height/depth
-mm
