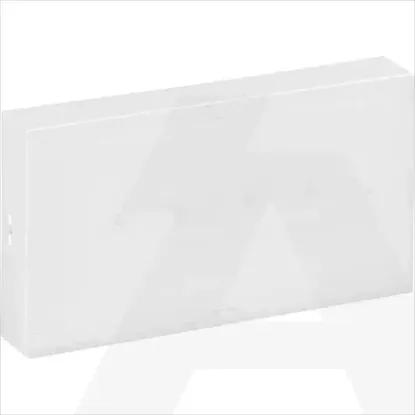

661640 | Uraone IP42 IK7 3H100LM Ni-mh
Code: 1781131
ManufacturerLegrand
Catalog number661640
TypeLegrand 661640
CategoryEmergency luminaire
EAN code3414970312297
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Outer diameter-mm
Width110mm
Protection classII
Built-in width-mm
Lamp typeLED not exchangeable
Voltage typeAC
Built-in diameter-mm
Connection typeOther
Lamp holderOther
Power supply systemPeripheral (individual battery)
Number of poles5
Colour housingWhite
Type of control gearLED operating device current-controlled
Suitable for labelling typeSticker
Type of indicatorOnly single-sided
Height/depth41mm
Length210mm
Conductor cross section2.5mm²
Battery qualityNiMH
Material coverPlastic, opal
Built-in length-mm
Impact strengthIK07
Number of lighting heads1
Nominal voltage230 - 230V
Wiring systemContinuous circuit/emergency circuit
Material housingPlastic
Rated luminous flux according to IEC 62722-2-1100lm
With remote switch connectionNo
Monitoring equipmentNone
Recognition distance-m
Colour temperature6000 - 6000K
Suitable for number of lamps-
Luminaire with limited surface temperature, sign "D“No
Rated life time L80/B10 at 25 °C-h
Rated life time L80/B50 at 25 °C-h
Rated life time L70/B50 at 25 °C147000h
Rated life time L70/B10 at 25 °C-h
With pictogramNo
Rated life time L90/B10 at 25 °C-h
LED nominal current at constant current43 - 43mA
Luminous flux in standby mode100lm
Light distributorDiffuser lens/optic/panel
Energy efficiency class of the built-in lampA++, A+, A (LED)
Rated life time L90/B50 at 25 °C-h
Rated ambient temperature according to IEC62722-2-1- - -°C
With light sourceYes
Built-in height/depth-mm
Nominal operation time3 - 3h
Power factor-
Mounting methodWall surface mounted
FunctionEscape route lighting/signage
Degree of protection (IP)IP42
Max. system power10W
