Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Protection classII
Width110mm
Conductor cross section2.5mm²
Connection typeOther
Lamp holderOther
Colour housingWhite
Outer diameter-mm
Power supply systemPeripheral (individual battery)
Suitable for labelling typeSticker
Type of control gearLED operating device current-controlled
Built-in diameter-mm
Voltage typeAC
Built-in width-mm
Suitable for number of lamps-
Wiring systemContinuous circuit/emergency circuit
Type of indicatorOnly single-sided
Material housingPlastic
Height/depth41mm
Number of poles5
Length210mm
With remote switch connectionNo
Material coverPlastic, opal
Number of lighting heads1
Luminaire with limited surface temperature, sign "D“No
Battery qualityNiMH
Lamp typeLED not exchangeable
Impact strengthIK07
Nominal voltage230 - 230V
With light sourceYes
Built-in length-mm
Rated luminous flux according to IEC 62722-2-1350lm
Recognition distance-m
With pictogramNo
Colour temperature5700 - 5700K
Monitoring equipmentAutomatic self test
Rated life time L80/B10 at 25 °C-h
Power factor-
Nominal operation time1 - 1h
Rated life time L70/B50 at 25 °C209000h
LED nominal current at constant current150 - 150mA
Built-in height/depth-mm
Energy efficiency class of the built-in lampA++, A+, A (LED)
Light distributorDiffuser lens/optic/panel
Rated life time L80/B50 at 25 °C-h
Rated ambient temperature according to IEC62722-2-1- - -°C
Rated life time L90/B10 at 25 °C-h
Rated life time L90/B50 at 25 °C69000h
Luminous flux in standby mode100lm
Rated life time L70/B10 at 25 °C-h
Mounting methodWall surface mounted
FunctionEscape route lighting/signage
Degree of protection (IP)IP42
Max. system power35W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

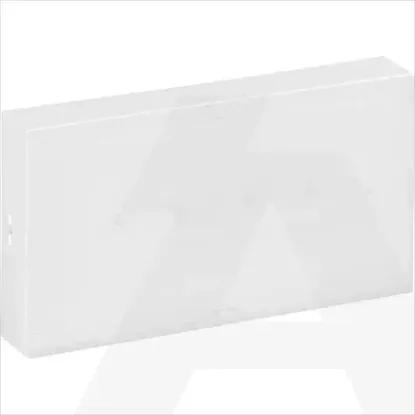

662634 | Uraone IK7 1H350LM Ni-cd ADR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Protection class
II
Width
110mm
Conductor cross section
2.5mm²
Connection type
Other
Lamp holder
Other
Colour housing
White
Outer diameter
-mm
Power supply system
Peripheral (individual battery)
Suitable for labelling type
Sticker
Type of control gear
LED operating device current-controlled
Built-in diameter
-mm
Voltage type
AC
Built-in width
-mm
Suitable for number of lamps
-
Wiring system
Continuous circuit/emergency circuit
Type of indicator
Only single-sided
Material housing
Plastic
Height/depth
41mm
Number of poles
5
Length
210mm
With remote switch connection
Material cover
Plastic, opal
Number of lighting heads
1
Luminaire with limited surface temperature, sign "D“
Battery quality
NiMH
Lamp type
LED not exchangeable
Impact strength
IK07
Nominal voltage
230 .. 230V
With light source
Built-in length
-mm
Rated luminous flux according to IEC 62722-2-1
350lm
Recognition distance
-m
With pictogram
Colour temperature
5700 .. 5700K
Monitoring equipment
Automatic self test
Rated life time L80/B10 at 25 °C
-h
Power factor
-
Nominal operation time
1 .. 1h
Rated life time L70/B50 at 25 °C
209000h
LED nominal current at constant current
150 .. 150mA
Built-in height/depth
-mm
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Light distributor
Diffuser lens/optic/panel
Rated life time L80/B50 at 25 °C
-h
Rated ambient temperature according to IEC62722-2-1
- .. -°C
Rated life time L90/B10 at 25 °C
-h
Rated life time L90/B50 at 25 °C
69000h
Luminous flux in standby mode
100lm
Rated life time L70/B10 at 25 °C
-h
Mounting method
Wall surface mounted
Function
Escape route lighting/signage
Degree of protection (IP)
IP42
Max. system power
35W
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
