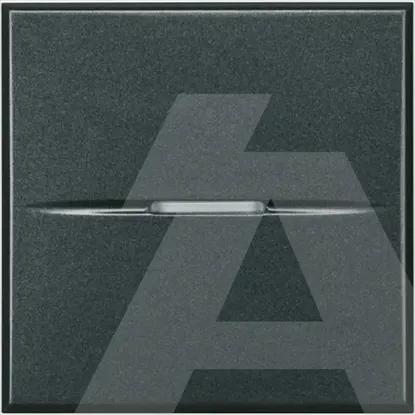

HS4003M2AN | Axo-sklop Izmj 1P 10A 2M ANT
Code: 1782151
ManufacturerLegrand
Catalog numberHS4003M2AN
TypeBticino HS4003M2AN
CategoryInstallation switch
EAN code8005543585795
Details
- •Domestic switching devices
- •Switch
- •10 KOM
- •LEGRAND
Technical specifications
Assembly arrangementModular device for domestic switching devices
ColourAnthracite
Halogen freeYes
Type of fasteningEngage (snap)
Built-in depth33mm
Material qualityThermoplastic
IlluminationOptional
MaterialPlastic
Connection typeOther
Feedback-signal contactNo
With mounting plateNo
Type of lightingLED exchangeable
Surface protectionLacquered
RAL-number (similar)7015
Number of rockers1
Depth of device35.5mm
Height of device45mm
Number of modules (module system)2
Function lightingIlluminated (on)
Push button switchNo
Width of device45mm
Switching current for fluorescent lamps10AX
Min. depth of built-in installation box30mm
Washing machine switchNo
Label space/information surfaceNo
Surface finishingMatt
Nominal voltage250V
Mounting methodModule frame
Method of operationOther
Rated current10A
Wiring systemTwo-way switch
Suitable for degree of protection (IP)IP20
