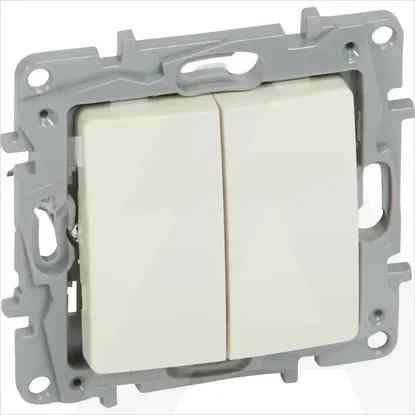

764602 | Nil-sklopk Serij KO Izmje Krem
Code: 1782251
ManufacturerLegrand
Catalog number764602
TypeLegrand 764602
CategoryInstallation switch
EAN code3414970683854
Details
- •Domestic switching devices
- •Switch
- •20 KOM
- •LEGRAND
Technical specifications
With mounting plateYes
Built-in depth31mm
Halogen freeYes
IlluminationOptional
Assembly arrangementBasic element
Type of fasteningMounting with claw and screw
ColourBeige
Connection typeOther
MaterialPlastic
Material qualityThermoplastic
Push button switchNo
Surface finishingGlossy
Switching current for fluorescent lamps10AX
RAL-number (similar)1013
Washing machine switchNo
Type of lightingNot included
Feedback-signal contactNo
Number of rockers2
Height of device75.8mm
Min. depth of built-in installation box30mm
Depth of device45.5mm
Label space/information surfaceNo
Width of device75.8mm
Number of modules (module system)-
Function lightingControl and orientation
Surface protectionUntreated
Nominal voltage250V
Mounting methodFlush mounted (plaster)
Method of operationRocker/button
Rated current10A
Wiring systemTwo-way switch
Suitable for degree of protection (IP)IP20
