Details
- •Data and telecommunication

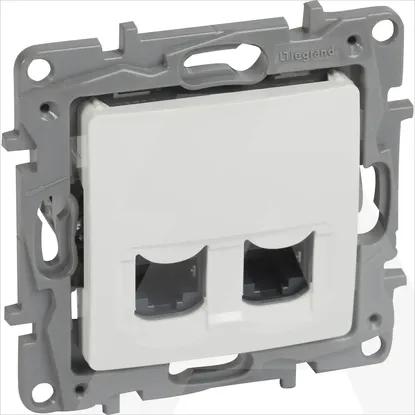

- •Data communication connection box copper (twisted pair)
- •10 KOM
- •LEGRAND
Technical specifications
Assembly arrangementBasic element with central cover plate
Connection typeInsulation displacement connector
Suitable for number of connectors2
ColourWhite
Outlet directionStraight
Mechanical codingNo
Separate earthing connectionNo
Duct installationNo
RAL-number0
Category6
Flush mounted (plaster)Yes
With label spaceNo
Separate strain reliefNo
Type of fasteningScrewing
Mounting method shielding connectionNone
Shielded housingNo
Shielded busesNo
Floor box/sub-floor mountedNo
Type of connectorRJ45 8(8)
Degree of protection (IP)IP20
Design suitableNo
With dust coverYes
Colour codingYes
With buses/couplingsYes
Terminal resistorNo
Surface mountingNo
Height of device75.8mm
Depth of device42.8mm
Width of device75.8mm
