Details
- •Data and telecommunication
- •Data communication connection box copper (twisted pair)
- •5 KOM
- •LEGRAND
Technical specifications
Shielded busesNo
Duct installationNo
Outlet directionStraight
Separate strain reliefNo
Type of fasteningScrewing
Category5E
Shielded housingNo
Connection typeInsulation displacement connector
RAL-number9003
ColourWhite
With dust coverYes
Flush mounted (plaster)Yes
Separate earthing connectionNo
Mechanical codingNo
Assembly arrangementBasic element with central cover plate
With label spaceNo
Surface mountingNo
Terminal resistorNo
Mounting method shielding connectionNone
Floor box/sub-floor mountedNo
Type of connectorRJ45 8(8)
Suitable for number of connectors2
With buses/couplingsYes
Design suitableNo
Colour codingYes
Width of device74.7mm
Degree of protection (IP)IP21
Depth of device37mm
Height of device74.7mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

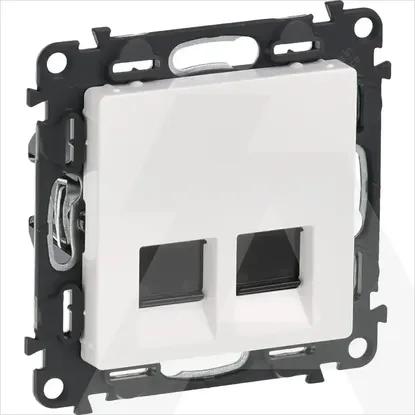

753141 | VAL-UTIC 2XRJ45 KAT 5E UTP BIJ
