Details
- •Data and telecommunication
- •Data communication connection box copper (twisted pair)
- •5 KOM
- •LEGRAND
Technical specifications
ColourOther
Duct installationNo
Category6A (IEC)
Suitable for number of connectors2
Connection typeInsulation displacement connector
Shielded busesYes
Assembly arrangementBasic element with central cover plate
Outlet directionStraight
Type of fasteningScrewing
Shielded housingNo
RAL-number1013
Separate strain reliefNo
Mounting method shielding connectionOther
Colour codingYes
With buses/couplingsYes
Depth of device37mm
With label spaceNo
Width of device74.7mm
Floor box/sub-floor mountedNo
Separate earthing connectionNo
Design suitableNo
Mechanical codingNo
Degree of protection (IP)IP21
Flush mounted (plaster)Yes
Type of connectorRJ45 8(8)
Height of device74.7mm
Terminal resistorNo
Surface mountingNo
With dust coverYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

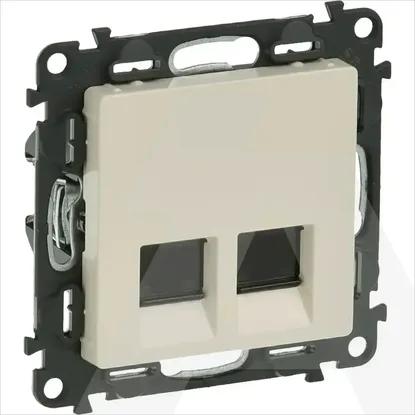

753249 | VAL-UTI 2XRJ45 KAT 6A STP KREM
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Data and telecommunication
- Data communication connection box copper (twisted pair)
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Colour
Other
Duct installation
Category
6A (IEC)
Suitable for number of connectors
2
Connection type
Insulation displacement connector
Shielded buses
Assembly arrangement
Basic element with central cover plate
Outlet direction
Straight
Type of fastening
Screwing
Shielded housing
RAL-number
1013
Separate strain relief
Mounting method shielding connection
Other
Colour coding
With buses/couplings
Depth of device
37mm
With label space
Width of device
74.7mm
Floor box/sub-floor mounted
Separate earthing connection
Design suitable
Mechanical coding
Degree of protection (IP)
IP21
Flush mounted (plaster)
Type of connector
RJ45 8(8)
Height of device
74.7mm
Terminal resistor
Surface mounting
With dust cover
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
