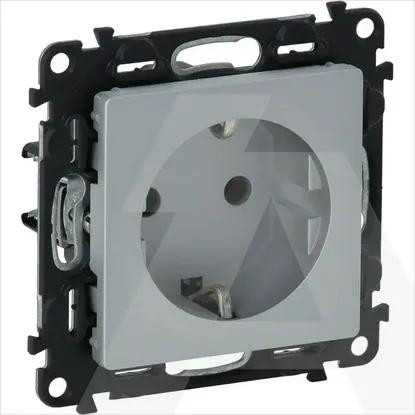

753325 | VAL-2P+E BEZ DJ ZAS VIJ ALU
Code: 1782728
Details
- •Domestic switching devices
- •Socket outlet
- •15 KOM
- •LEGRAND
Technical specifications
ModelProtective contact (SCHUKO)
Mounting methodFlush mounted (plaster)
Type of fasteningMounting with claw and screw
Material qualityThermoplastic
Surface finishingGlossy
MaterialPlastic
ColourAluminium
Surface protectionLacquered
Halogen freeYes
RAL-number (similar)7040
TransparentNo
Impact strengthIK04
Suitable for degree of protection (IP)IP20
Connection typeScrewed terminal
Number of modules (module system)-
Width of device74.7mm
Nominal voltage250V
Height of device74.7mm
Frequency50 - 60Hz
With hinged lidNo
Depth of device39mm
Number of units1
Label space/information surfaceNo
Imprint/indicationWithout imprint
Rated fault current-mA
Min. depth of built-in installation box-mm
LockableNo
Anti-bacterial treatmentNo
Insulated mountingNo
Over voltage protectionNo
With signal lampNo
Fault current protectionNo
With on/off switchNo
With function lightingNo
With enhanced contact protectionYes
Eject-mechanismNo
With built-in USB power supplyNo
For heavy conditions (according to VDE)No
Number of phases1
Rotated central insertNo
With orientation lightingNo
With miniature fuseNo
With loop through functionYes
Special power supplyNo special power supply
Number of socket outlets switchable0
Protective earth pin roundNo
Number of active pins (round)1
Protective contactYes
Number of active pins (flat)0
Nominal current16A
