Details
- •Data and telecommunication
- •Data communication connection box copper (twisted pair)
- •20 KOM
- •LEGRAND
Technical specifications
Connection type110
Type of fasteningScrewing
Mounting method shielding connectionNone
Duct installationNo
Separate strain reliefNo
Outlet directionStraight
Suitable for number of connectors1
Shielded housingNo
Floor box/sub-floor mountedNo
Type of connectorRJ45 8(8)
RAL-number9003
Separate earthing connectionNo
Mechanical codingNo
Design suitableNo
With label spaceNo
Surface mountingYes
Terminal resistorNo
With dust coverNo
Flush mounted (plaster)No
With buses/couplingsYes
Colour codingYes
Width of device65mm
Depth of device43.6mm
Height of device65mm
Assembly arrangementBasic element with full cover plate
ColourWhite
Category5E
Shielded busesNo
Degree of protection (IP)IP21
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

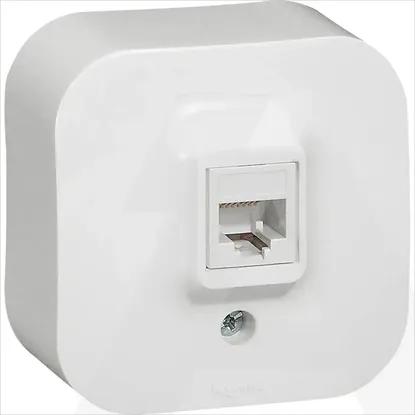

782424 | FORIX-IP2X KAT 5E UTP RJ45 BIJ
