Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •10 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated current2A
Built-in depth44mm
Width in number of modular spacings1
Rated voltage230V
Over voltage category-
Number of protected poles1
Pollution degree2
Release characteristicC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Frequency50 - 60Hz
Connectable conductor cross section solid-core- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section multi-wired- - -mm²
Degree of protection (IP)IP20
Current limiting class3
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Suitable for flush-mounted installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

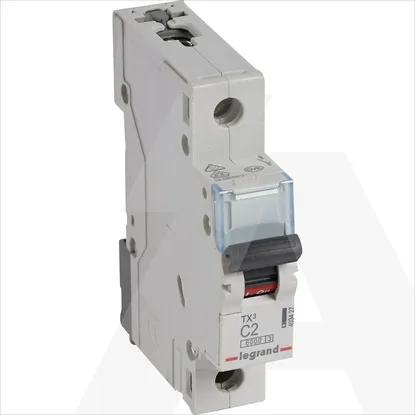

403427 | TX3 AUT OSIG.1P.C2 6000A
