Details

  • •Circuit breakers and fuses

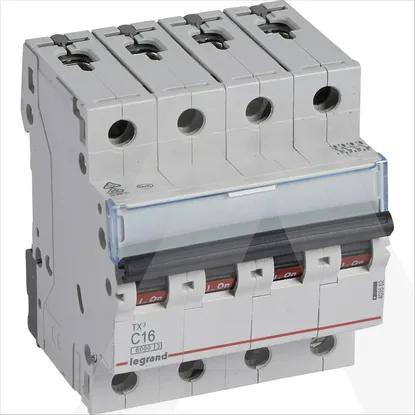

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Built-in depth44mm
Current limiting class3
Over voltage category-
Connectable conductor cross section multi-wired- - -mm²
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Width in number of modular spacings4
Pollution degree2
Number of protected poles3
Connectable conductor cross section solid-core- - -mm²
Voltage typeAC
Rated voltage400V
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Additional equipment possibleYes
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current16A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
