Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage400V
Frequency50 - 60Hz
Release characteristicC
Rated current32A
Rated insulation voltage Ui500V
Built-in depth44mm
Over voltage category-
Voltage typeAC
Current limiting class3
Concurrently switching neutral conductorYes
Number of protected poles3
Ambient temperature during operating- - -°C
Additional equipment possibleYes
Width in number of modular spacings4
Suitable for flush-mounted installationYes
Pollution degree2
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired- - -mm²
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

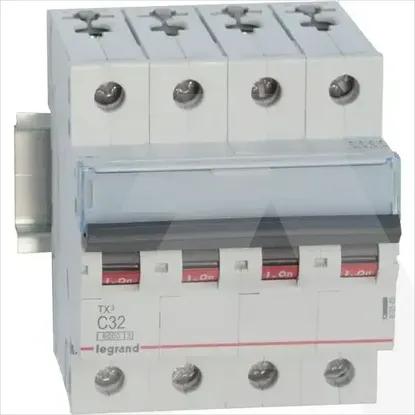

403565 | TX3 AUT OSIG. 4P.C32 6000A
