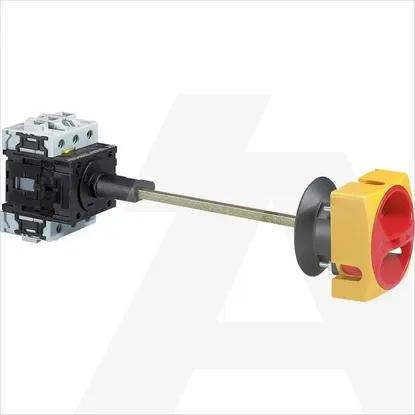

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
Rated permanent current Iu50A
Rated operating voltage690 - 690V
Number of poles3
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V15kW
Conditioned rated short-circuit current Iq10kA
Number of auxiliary contacts as change-over contact0
Number of switches-
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as main switchYes
Rated short-time withstand current lcw1.8kA
Rated operation power at AC-23, 400 V18.5kW
Type of control elementDoor coupling rotary drive
Colour control elementRed
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Version as safety switchYes
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V50A
Switching power at 400 V20kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
022144 | RAST.SKL. SA PROD.RUCIC 3P 50A
