Aleta.hr

Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •10 KOM
  • •LEGRAND

Technical specifications

Rated operation power at AC-3, 400 V-kW
Number of switches-
Number of auxiliary contacts as normally open contact-
Number of auxiliary contacts as normally closed contact-
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact-
Number of poles2
Rated operating voltage- - -V
Conditioned rated short-circuit current Iq4500kA
Rated permanent current Iu32A
Rated operation power at AC-23, 400 V-kW
Version as safety switchYes
Type of control elementToggle
Version as maintenance-/service switchNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V-A
Max. rated operation voltage Ue AC400V
Rated permanent current at AC-21, 400 V-A
InterlockableYes
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Motor drive integratedNo
Rated short-time withstand current lcw-kA
Voltage release optionalNo
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Switching power at 400 V-kW
Version as emergency stop installationNo
Suitable for front mounting centreNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

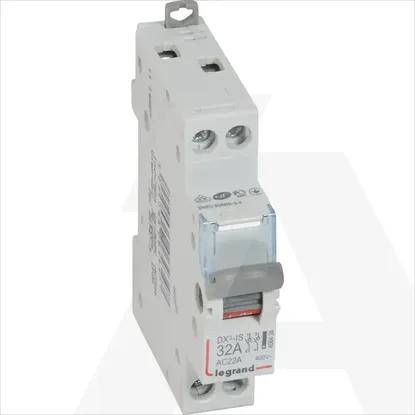

406434 | DX3 IS RAST SKL 2P 32A
