Aleta.hr

Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •5 KOM
  • •LEGRAND

Technical specifications

Number of auxiliary contacts as change-over contact-
Type of control elementToggle
Conditioned rated short-circuit current Iq4500kA
Version as main switchYes
Rated short-time withstand current lcw-kA
Number of auxiliary contacts as normally closed contact-
Number of auxiliary contacts as normally open contact-
Rated operation power at AC-3, 400 V-kW
Rated operating voltage- - -V
Number of poles4
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
Motor drive integratedNo
InterlockableYes
Version as emergency stop installationNo
Number of switches-
Rated permanent current Iu32A
Version as maintenance-/service switchNo
Rated operation power at AC-23, 400 V-kW
Version as safety switchYes
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC400V
Switching power at 400 V-kW
Suitable for floor mountingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

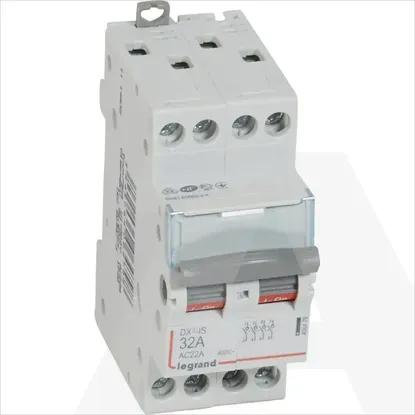

406479 | DX3 IS RAST SKL 4P 32A

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 5 KOM
  • LEGRAND

Technical specifications

Number of auxiliary contacts as change-over contact

-

Type of control element

Toggle

Conditioned rated short-circuit current Iq

4500kA

Version as main switch

Rated short-time withstand current lcw

-kA

Number of auxiliary contacts as normally closed contact

-

Number of auxiliary contacts as normally open contact

-

Rated operation power at AC-3, 400 V

-kW

Rated operating voltage

- .. -V

Number of poles

4

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP20

Motor drive integrated

Interlockable

Version as emergency stop installation

Number of switches

-

Rated permanent current Iu

32A

Version as maintenance-/service switch

Rated operation power at AC-23, 400 V

-kW

Version as safety switch

Version as reversing switch

Suitable for front mounting 4-hole

Motor drive optional

Suitable for front mounting centre

Suitable for distribution board installation

Suitable for intermediate mounting

Max. rated operation voltage Ue AC

400V

Switching power at 400 V

-kW

Suitable for floor mounting

Voltage release optional

Rated permanent current at AC-21, 400 V

-A

Rated permanent current at AC-23, 400 V

-A

Device construction

Built-in device fixed built-in technique

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
