Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated operating voltage- - -V
Rated permanent current Iu63A
Number of poles4
Number of auxiliary contacts as normally closed contact-
Number of auxiliary contacts as normally open contact-
Rated operation power at AC-3, 400 V-kW
InterlockableYes
Conditioned rated short-circuit current Iq4500kA
Motor drive integratedNo
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Version as safety switchYes
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Type of control elementToggle
Number of switches-
Number of auxiliary contacts as change-over contact-
Degree of protection (IP), front sideIP20
Voltage release optionalNo
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC400V
Suitable for intermediate mountingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

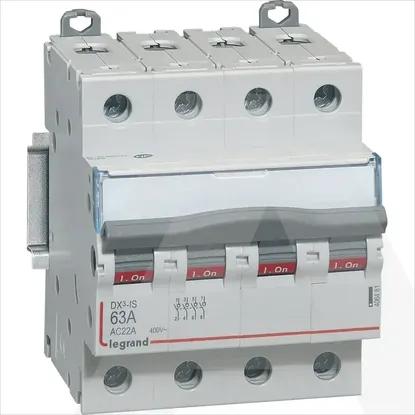

406481 | DX3 IS RAST SKL 4P 63A
