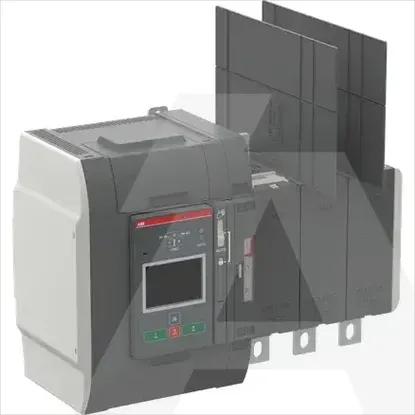

1SCA149956R1001 | OXB500E3X4QB
Code: 1785664
ManufacturerABB
Catalog number1SCA149956R1001
TypeOXB500E3X4QB
CategorySwitch disconnector
EAN code6417019799827
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Rated operation power at AC-3, 400 V-kW
Motor drive integratedYes
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Rated operating voltage- - -V
Device constructionBuilt-in device plug-in technique
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw42kA
Rated permanent current at AC-21, 400 V-A
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)1
Version as reversing switchNo
Switching power at 400 V-kW
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC480V
