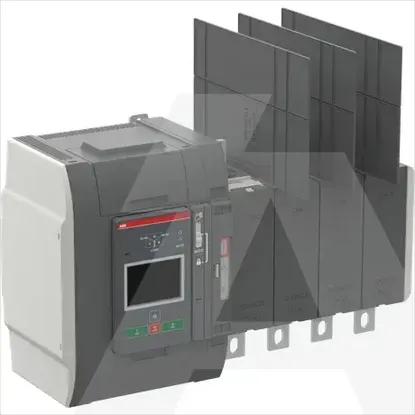

1SCA150003R1001 | OXB500E3S4QB
Code: 1785669
ManufacturerABB
Catalog number1SCA150003R1001
TypeOXB500E3S4QB
CategorySwitch disconnector
EAN code6417019800516
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of switches1
Number of auxiliary contacts as change-over contact0
Rated operating voltage- - -V
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedYes
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Type of control elementLong turning handle
Version as main switchYes
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Version as reversing switchNo
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw42kA
Rated permanent current at AC-21, 400 V-A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC480V
