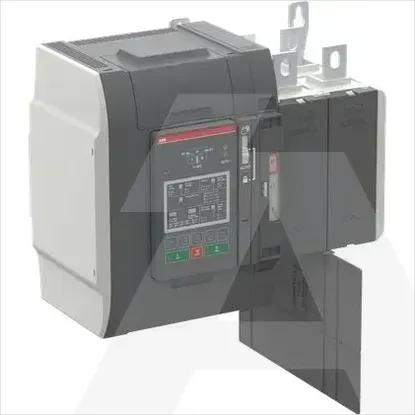

1SCA150930R1001 | OXB800E1S2QT
Code: 1785671
ManufacturerABB
Catalog number1SCA150930R1001
TypeOXB800E1S2QT
CategorySwitch disconnector
EAN code6417019811468
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Version as emergency stop installationNo
Number of switches1
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedYes
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq-kA
Rated operating voltage- - -V
Version as main switchYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw18kA
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Degree of protection (NEMA)1
Suitable for distribution board installationYes
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for front mounting 4-holeYes
Switching power at 400 V-kW
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Rated permanent current at AC-23, 400 V-A
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC240V
