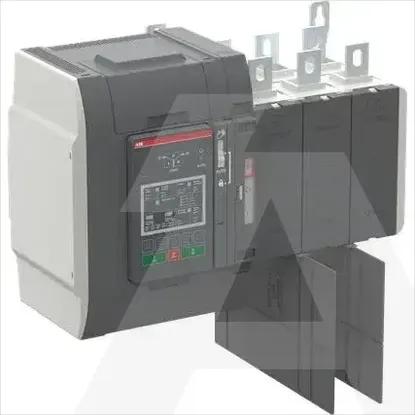

1SCA150940R1001 | OXB800E3X2QT
Code: 1785678
ManufacturerABB
Catalog number1SCA150940R1001
TypeOXB800E3X2QT
CategorySwitch disconnector
EAN code6417019811765
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage- - -V
Suitable for front mounting centreNo
InterlockableNo
Rated short-time withstand current lcw42kA
Suitable for front mounting 4-holeYes
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Number of auxiliary contacts as normally open contact0
Motor drive integratedYes
Suitable for floor mountingNo
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V-kW
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Voltage release optionalNo
Suitable for distribution board installationYes
Version as reversing switchNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC480V
