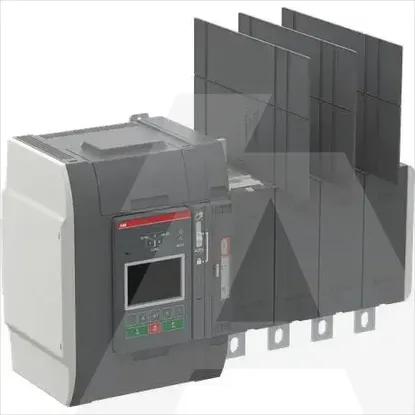

1SCA151057R1001 | OXB630E3S3QB
Code: 1785695
ManufacturerABB
Catalog number1SCA151057R1001
TypeOXB630E3S3QB
CategorySwitch disconnector
EAN code6417019813141
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Version as emergency stop installationNo
Rated operating voltage- - -V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Degree of protection (IP), front sideIP20
Motor drive integratedYes
Conditioned rated short-circuit current Iq-kA
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for front mounting 4-holeYes
Version as main switchYes
Rated operation power at AC-23, 400 V-kW
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Device constructionBuilt-in device plug-in technique
Version as safety switchNo
Switching power at 400 V-kW
Degree of protection (NEMA)1
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Rated short-time withstand current lcw42kA
Suitable for floor mountingNo
Motor drive optionalNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC480V
