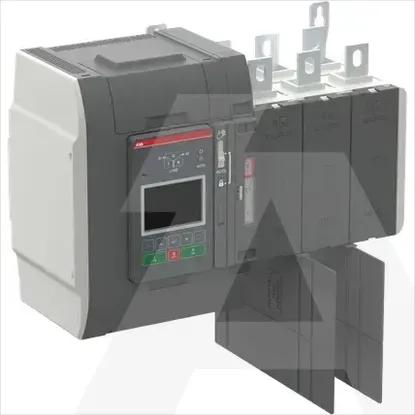

1SCA151065R1001 | OXB630E3X3QT
Code: 1785701
ManufacturerABB
Catalog number1SCA151065R1001
TypeOXB630E3X3QT
CategorySwitch disconnector
EAN code6417019813226
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage- - -V
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchYes
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V-kW
Number of switches1
Version as emergency stop installationNo
Degree of protection (IP), front sideIP20
InterlockableNo
Motor drive integratedYes
Type of control elementLong turning handle
Rated short-time withstand current lcw42kA
Degree of protection (NEMA)1
Device constructionBuilt-in device plug-in technique
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for floor mountingNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Suitable for distribution board installationYes
Motor drive optionalNo
Suitable for front mounting centreNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC480V
