Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu-A
Rated operation power at AC-3, 400 V-kW
Number of poles3
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Motor drive integratedYes
Rated operating voltage- - -V
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of switches1
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Type of control elementLong turning handle
Rated short-time withstand current lcw42kA
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-23, 400 V-A
Suitable for front mounting centreNo
Motor drive optionalNo
Voltage release optionalNo
Switching power at 400 V-kW
Degree of protection (NEMA)1
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC480V
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

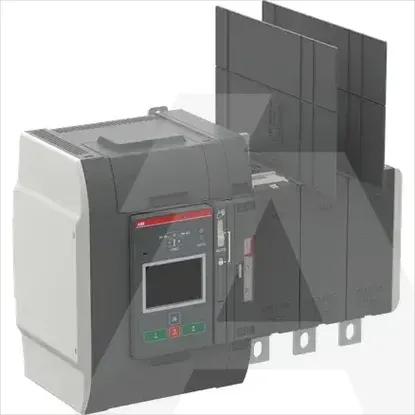

1SCA151067R1001 | OXB630E3X4QB
