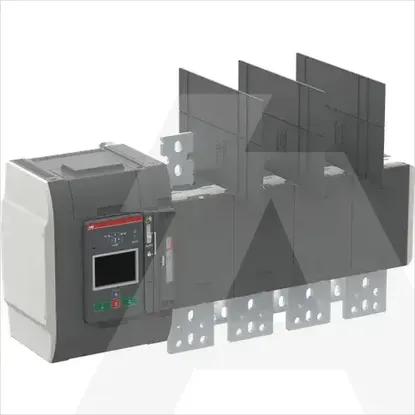

1SCA152414R1001 | OXB1600E3S4QB
Code: 1785723
ManufacturerABB
Catalog number1SCA152414R1001
TypeOXB1600E3S4QB
CategorySwitch disconnector
EAN code6417019833958
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Number of switches1
Degree of protection (IP), front sideIP20
Rated operating voltage- - -V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Type of control elementLong turning handle
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchYes
Motor drive integratedYes
Suitable for distribution board installationYes
Degree of protection (NEMA)1
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Device constructionBuilt-in device plug-in technique
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw65kA
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC480V
