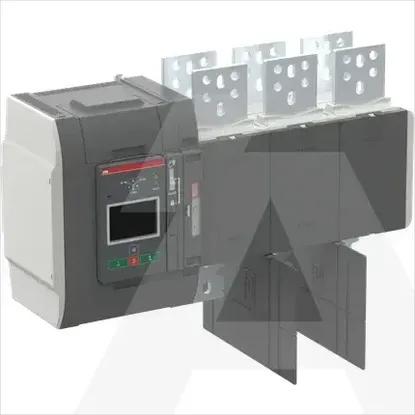

1SCA153585R1001 | OXB1000E3X4QT
Code: 1785788
ManufacturerABB
Catalog number1SCA153585R1001
TypeOXB1000E3X4QT
CategorySwitch disconnector
EAN code6417019846118
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP), front sideIP20
Version as main switchYes
Number of switches1
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq-kA
Motor drive integratedYes
Version as emergency stop installationNo
Rated operating voltage- - -V
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeYes
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw65kA
Motor drive optionalNo
Voltage release optionalNo
Version as safety switchNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)1
Suitable for floor mountingNo
Switching power at 400 V-kW
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Device constructionBuilt-in device plug-in technique
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC480V
