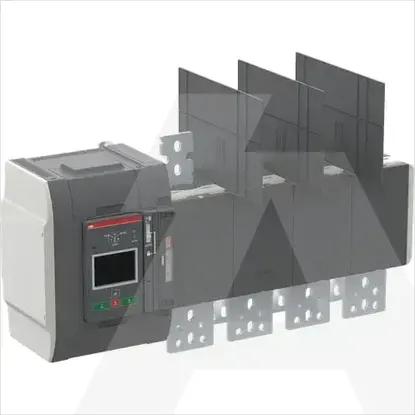

1SCA153614R1001 | OXB1250E3S4QB
Code: 1785793
ManufacturerABB
Catalog number1SCA153614R1001
TypeOXB1250E3S4QB
CategorySwitch disconnector
EAN code6417019846408
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Suitable for front mounting 4-holeYes
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingNo
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
Number of switches1
Rated short-time withstand current lcw65kA
Number of auxiliary contacts as normally open contact0
Rated operating voltage- - -V
Type of control elementLong turning handle
Motor drive integratedYes
Version as main switchYes
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
InterlockableNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Degree of protection (NEMA)1
Motor drive optionalNo
Version as reversing switchNo
Switching power at 400 V-kW
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC480V
