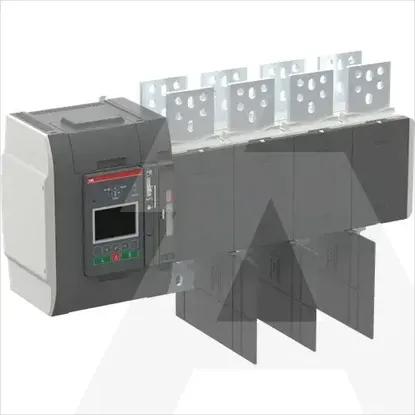

1SCA153624R1001 | OXB1600E3S3QT
Code: 1785803
ManufacturerABB
Catalog number1SCA153624R1001
TypeOXB1600E3S3QT
CategorySwitch disconnector
EAN code6417019846507
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage- - -V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq-kA
Version as safety switchNo
Degree of protection (IP), front sideIP20
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Number of switches1
InterlockableNo
Type of electrical connection of main circuitBolt connection
Motor drive integratedYes
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Degree of protection (NEMA)1
Suitable for distribution board installationYes
Suitable for front mounting 4-holeYes
Rated permanent current at AC-21, 400 V-A
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-23, 400 V-A
Rated short-time withstand current lcw65kA
Suitable for floor mountingNo
Suitable for front mounting centreNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC480V
