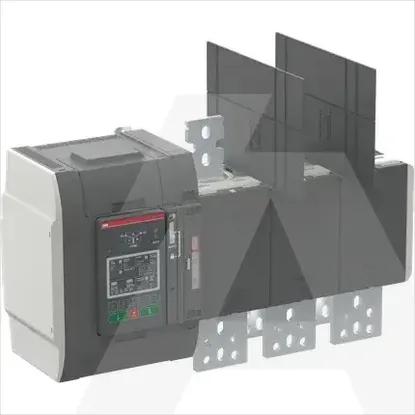

1SCA153625R1001 | OXB1600E3X2QB
Code: 1785804
ManufacturerABB
Catalog number1SCA153625R1001
TypeOXB1600E3X2QB
CategorySwitch disconnector
EAN code6417019846514
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
InterlockableNo
Rated operation power at AC-23, 400 V-kW
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Suitable for front mounting centreNo
Conditioned rated short-circuit current Iq-kA
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw65kA
Degree of protection (IP), front sideIP20
Number of switches1
Motor drive integratedYes
Version as safety switchNo
Type of control elementLong turning handle
Version as main switchYes
Rated operating voltage- - -V
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)1
Device constructionBuilt-in device plug-in technique
Voltage release optionalNo
Version as reversing switchNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC480V
