2CKA001799A0902 | 1702-84
Code: 1788766
Details
- •Domestic switching devices

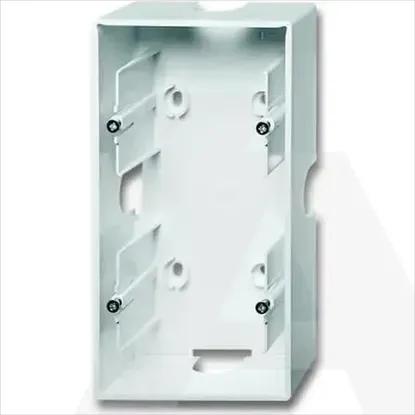

- •Surface mounted housing for flush mounted switching device
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
Material qualityThermoplastic
Surface finishingGlossy
MaterialPlastic
ColourWhite
Halogen freeYes
Surface protectionUntreated
RAL-number (similar)9016
TransparentNo
Width of device81mm
Number of modules (module system)-
Height of device151mm
Number of units2
Depth of device42mm
Assembly arrangementSurface mounted housing
Mounting directionHorizontal and vertical
With cable entryYes
Shock resistantNo
With screw gland entryNo
With duct entryYes
With cover frameNo
Suitable for modular domestic switching devicesYes
Suitable for mounting over existing flush-mounted boxNo
Desktop deviceNo
Number of inlets-
Inlet from the rearNo
Depth42mm
Width80mm
Number of earthing terminals-
With installation tube entryNo
Height151mm
Cross-trunking mountingNo
Diameter-mm
Compliant with BS 4662No
