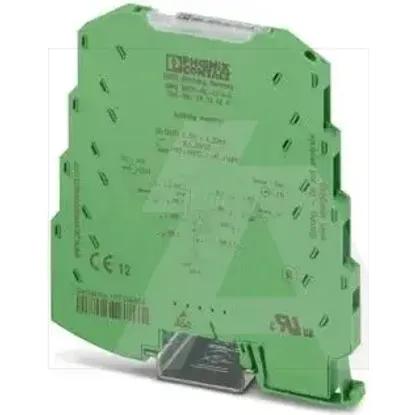

2813525 | MINI MCR-SL-U-I-4
Code: 1835236
ManufacturerPhoenix Contact
Catalog number2813525
TypeIsolation amplifier
Category-
EAN code4046356100618
Details
- •Sensors for automation technology
- •Isolation amplifier
- •1 KOM
- •PHOENIX
Technical specifications
Mounting methodSnap mounting support rail
Power consumption0.45W
Type of power supplyOther
Operating temperature-20 - 65°C
Type of electric connectionScrew connection
Degree of protection (IP)IP20
Number of output ranges +10 V ... -10 V0
Number of output ranges +5 V ... -5 V0
Number of output ranges 0 V ... 1 V0
Number of output ranges 0 mA ... 10 mA0
Number of output ranges 0 V ... 10 V0
Number of output ranges 0 mV ... 100 mV0
Number of output ranges 0 V ... 2 V0
Number of output ranges 0 V ... 2.5 V0
Number of output ranges 0 mA ... 20 mA0
Number of output ranges 0 V ... 20 V0
Number of output ranges 0 mV ... 200 mV0
Number of output ranges 0 V ... 24 V0
Number of output ranges 0 V ... 30 V0
Number of output ranges 0 mV ... 300 mV0
Number of output ranges 0 mA ... 5 mA0
Number of output ranges 0 V ... 5 V0
Number of output ranges 0 mV ... 500 mV0
Number of output ranges 0 mV ... 60 mV0
Number of output ranges -1 V ... +1 V0
Number of output ranges 1 V ... 5 V0
Number of output ranges -10 mA ... +10 mA0
Number of output ranges -10 V ... +10 V0
Number of output ranges 10 V ... 0 V0
Number of output ranges 10 V ... 2 V0
Number of output ranges -100 mV ... +100 mV0
Number of output ranges -2 V ... +2 V0
Number of output ranges 2 V ... 10 V0
Number of output ranges -2.5 V ... +2.5 V0
Number of output ranges -20 mA ... +20 mA0
Number of output ranges -20 V ... +20 V0
Number of output ranges 20 mA ... 0 mA0
Number of output ranges 20 mA ... 4 mA0
Number of output ranges -300 mV ... +300 mV0
Number of output ranges 4 mA ... 20 mA1
Number of output ranges -5 mA ... +5 mA0
Number of output ranges -5 V ... +5 V0
Number of output ranges 5 V ... 0 V0
Number of output ranges 5 V ... 1 V0
Number of output ranges -500 mV ... +500 mV0
Number of output ranges -60 mV ... +60 mV0
Number of input ranges +10 V ... -10 V0
Number of input ranges +5 V ... -5 V0
Number of input ranges 0 V ... 1 V0
Number of input ranges 0 mA ... 10 mA0
Number of input ranges 0 V ... 10 V1
Number of input ranges 0 mV ... 100 mV0
Number of input ranges 0 V ... 2 V0
Number of input ranges 0 V ... 2.5 V0
Number of input ranges 0 mA ... 20 mA0
Number of input ranges 0 V ... 20 V0
Number of input ranges 0 mV ... 200 mV0
Number of input ranges 0 V ... 24 V0
Number of input ranges 0 V ... 30 V0
Number of input ranges 0 mV ... 300 mV0
Number of input ranges 0 mA ... 5 mA0
Number of input ranges 0 V ... 5 V0
Number of input ranges 0 mV ... 500 mV0
Number of input ranges 0 mV ... 60 mV0
Number of input ranges -1 V ... +1 V0
Number of input ranges 1 V ... 5 V0
Number of input ranges -10 mA ... +10 mA0
Number of input ranges -10 V ... +10 V0
Number of input ranges 10 V ... 0 V0
Number of input ranges 10 V ... 2 V0
Number of input ranges -100 mV ... +100 mV0
Number of input ranges -2 V ... +2 V0
Number of input ranges 2 V ... 10 V0
Number of input ranges -2.5 V ... +2.5 V0
Number of input ranges -20 mA ... +20 mA0
Number of input ranges -20 V ... +20 V0
Number of input ranges 20 mA ... 0 mA0
Number of input ranges 20 mA ... 4 mA0
Number of input ranges -300 mV ... +300 mV0
Number of input ranges 4 mA ... 20 mA0
Number of input ranges -5 mA ... +5 mA0
Number of input ranges -5 V ... +5 V0
Number of input ranges 5 V ... 0 V0
Number of input ranges 5 V ... 1 V0
Number of input ranges -500 mV ... +500 mV0
Number of input ranges -60 mV ... +60 mV0
Load500 - 500Ohm
Inherently safe according to EN 60947-5-6 NAMURNo
Galvanic separation between inputsNo
Construction type of deviceBuilt-in device
Malfunction message outputNo
Temperature drift0.01%/K
SIL according to IEC 61508None
Galvanic separation between input and outputYes
Galvanic separation between supply voltage and all other current circuitsYes
Width6.2mm
Height93.1mm
Depth101.2mm
Number of channels1
Rated supply voltage at DC19.2 - 30V
