Details
- •Sensors
- •NAMUR switching amplifier
- •1 KOM
- •PHOENIX
Technical specifications
Switching power500VA
Switching voltage250V
Number of inputs, potential-free2
Number of channels2
Number of output circuits relays normally open contact2
Number of inputs, according to NAMUR2
Number of output circuits transistor npn0
Number of output circuits relays change-over contact0
Rated supply voltage at DC19.2 - 30V
Number of output circuits transistor potential-free0
Malfunction message outputNo
Number of output circuits transistor antivalent0
Number of output circuits opto-coupler0
Galvanic separation between inputsNo
Number of output circuits transistor pnp0
Inherently safe according to EN 60947-5-6 NAMURNo
Galvanic separation between input and outputYes
Type of power supplyOther
Suitable for safety functionsYes
Width12.5mm
Performance level according to EN ISO 13849-1None
Galvanic separation between supply voltage and all other current circuitsYes
Galvanic separation between output to outputYes
Type of electric connectionScrew connection
Degree of protection (IP)IP20
Operating temperature-40 - 60°C
Construction type of deviceBuilt-in device
Mounting methodOther
Height112.5mm
Power consumption1W
Depth113.7mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

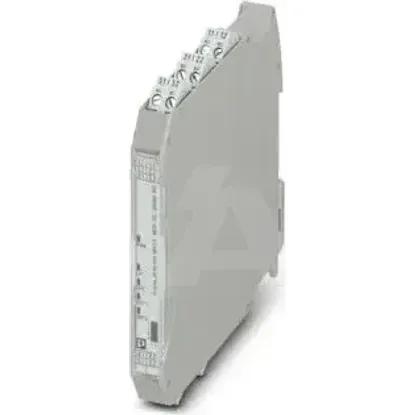

2865049 | MACX MCR-SL-2NAM-RO
