Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •PHOENIX
Technical specifications
With short-circuit releaseNo
Rated control supply voltage Us at AC 60HZ85 - undefinedV

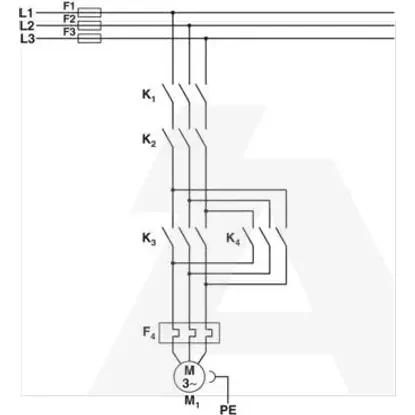

Type of motor starterReversing starter
Rated control supply voltage Us at AC 50HZ85 - undefinedV
Release classCLASS 10
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact1
Overload release current setting1.5 - 9A
Rated operation current at AC-3, 400 V9A
Type of electrical connection for auxiliary- and control current circuitScrew connection
Rail mounting possibleYes
Suitable for emergency stopYes
Number of auxiliary contacts as normally open contact1
External reset possibleYes
Temperature compensated overload protectionNo
Number of command positions1
Voltage type for actuatingAC
Rated operation current Ie9A
Degree of protection (IP)IP20
Height107mm
Width22.5mm
Depth114mm
