Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •PHOENIX
Technical specifications
Type of motor starterDirect online starter (DOL)
Rated control supply voltage Us at AC 50HZ85 - undefinedV
With short-circuit releaseNo
Rated control supply voltage Us at AC 60HZ85 - undefinedV
Voltage type for actuatingAC
Number of auxiliary contacts as normally open contact1
Release classCLASS 10
Number of auxiliary contacts as normally closed contact1
Rated operation current at AC-3, 400 V9A
Temperature compensated overload protectionNo
Rail mounting possibleYes
Number of command positions1
Suitable for emergency stopYes
External reset possibleYes
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Width22.5mm
Depth114mm
Height107mm
Rated operation current Ie9A
Overload release current setting1.5 - 9A
Degree of protection (IP)IP20
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

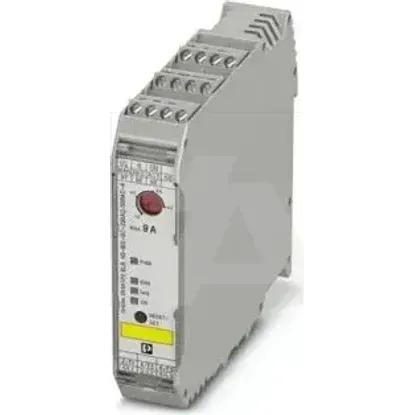

2900570 | ELR H3-IES-SC-230AC/500AC-9
