Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •PHOENIX
Technical specifications
Type of motor starterReversing starter
Voltage type for actuatingDC
Rated control supply voltage Us at DC19.2 - undefinedV
Number of auxiliary contacts as normally open contact1
With short-circuit releaseNo
Rated operation current at AC-3, 400 V0.6A
Number of auxiliary contacts as normally closed contact1
Temperature compensated overload protectionNo
Rail mounting possibleYes
Type of electrical connection for auxiliary- and control current circuitScrew connection
Release classCLASS 10
Type of electrical connection of main circuitScrew connection
Width22.5mm
External reset possibleYes
Number of command positions1
Height107mm
Depth114mm
Rated operation current Ie0.6A
Overload release current setting0.075 - 0.6A
Degree of protection (IP)IP20
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

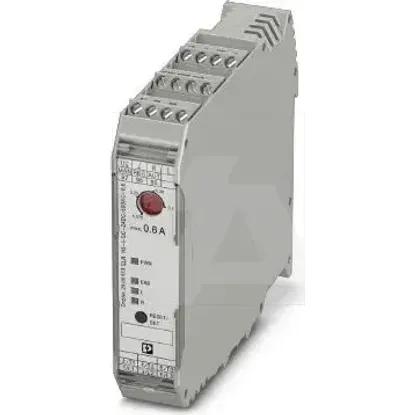

2900573 | ELR H5-I-SC- 24DC/500AC-0,6
