Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •PHOENIX
Technical specifications
Type of motor starterReversing starter
Rated operation current at AC-3, 400 V9A
Number of auxiliary contacts as normally closed contact1
With short-circuit releaseNo
Rated operation current Ie9A
Release classCLASS 10
Voltage type for actuatingDC
Temperature compensated overload protectionNo
Overload release current setting1.5 - 9A
Number of auxiliary contacts as normally open contact1
Rated control supply voltage Us at DC19.2 - undefinedV
Type of electrical connection of main circuitScrew connection
Rail mounting possibleYes
External reset possibleYes
Type of electrical connection for auxiliary- and control current circuitScrew connection
Width22.5mm
Height107mm
Number of command positions1
Depth114mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

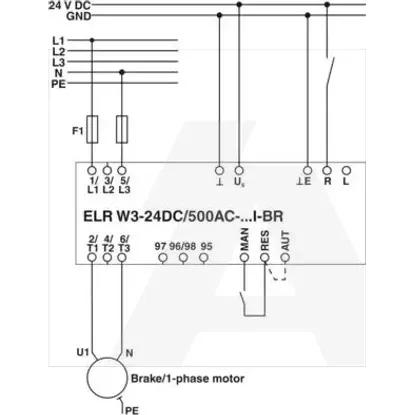

2900795 | ELR W3- 24DC/500AC- 9I-BR
