Details
- •Sensors
- •NAMUR switching amplifier
- •1 KOM
- •PHOENIX
Technical specifications
Number of inputs, according to NAMUR1
Number of inputs, potential-free1
Type of power supplyOther
Rated supply voltage at DC9.6 - 30V
Switching voltage30V
Number of output circuits relays change-over contact0
Number of output circuits relays normally open contact2
Number of output circuits transistor npn0
Number of output circuits transistor potential-free2
Malfunction message outputNo
Number of output circuits transistor antivalent0
Galvanic separation between inputsNo
Number of output circuits transistor pnp2
Inherently safe according to EN 60947-5-6 NAMURNo
Galvanic separation between input and outputYes
Galvanic separation between output to outputYes
Number of channels1
Number of output circuits opto-coupler0
Performance level according to EN ISO 13849-1None
Galvanic separation between supply voltage and all other current circuitsYes
Width6.2mm
Height109.81mm
Operating temperature-40 - 70°C
Power consumption0.45W
Depth119.2mm
Type of electric connectionScrew connection
Mounting methodOther
Suitable for safety functionsNo
Construction type of deviceBuilt-in device
Degree of protection (IP)IP20
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

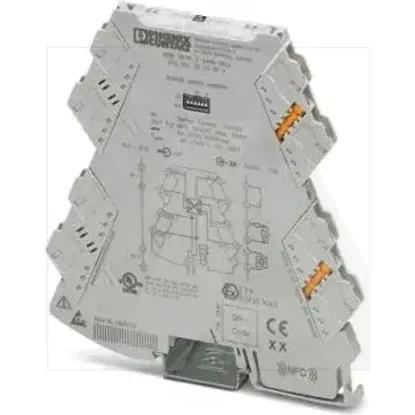

2902004 | MINI MCR-2-NAM-2RO
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- NAMUR switching amplifier
- 1 KOM
- PHOENIX
DetailsTechnical specificationsRelated products
Technical specifications
Number of inputs, according to NAMUR
1
Number of inputs, potential-free
1
Type of power supply
Other
Rated supply voltage at DC
9.6 .. 30V
Switching voltage
30V
Number of output circuits relays change-over contact
0
Number of output circuits relays normally open contact
2
Number of output circuits transistor npn
0
Number of output circuits transistor potential-free
2
Malfunction message output
Number of output circuits transistor antivalent
0
Galvanic separation between inputs
Number of output circuits transistor pnp
2
Inherently safe according to EN 60947-5-6 NAMUR
Galvanic separation between input and output
Galvanic separation between output to output
Number of channels
1
Number of output circuits opto-coupler
0
Performance level according to EN ISO 13849-1
None
Galvanic separation between supply voltage and all other current circuits
Width
6.2mm
Height
109.81mm
Operating temperature
-40 .. 70°C
Power consumption
0.45W
Depth
119.2mm
Type of electric connection
Screw connection
Mounting method
Other
Suitable for safety functions
Construction type of device
Built-in device
Degree of protection (IP)
IP20
