Details
- •Terminal blocks
- •Feed-through terminal block
- •3 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section multi-wired25 - 35mm²
Rated current In232A
Number of clamp positions per level2
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 2Screw connection
Operating temperature-60 - 110°C
Mounting methodDIN rail (top hat rail) 35 mm
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section fine-strand without cable end sleeve35 - 95mm²
Type of electrical connection 1Screw connection
Depth90mm
Material insulation bodyOther
ColourGrey
Closing plate requiredNo
Height83mm
Connectable conductor cross section solid-core25 - 95mm²
Suitable for conductor materialAluminium/copper
Width25mm
Connectable conductor cross section fine-strand with cable end sleeve35 - 35mm²
Internally connected stagesYes
Rated voltage1000V
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

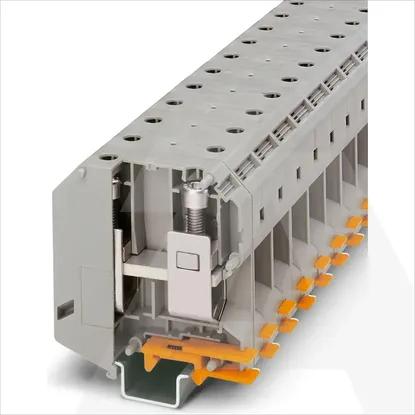

3010013 | UKH 95
