Details
- •Terminal blocks

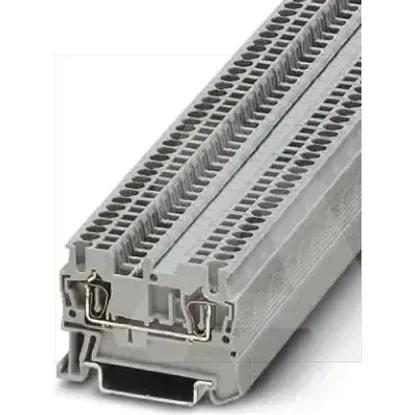

- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Rated current In17.5A
Number of clamp positions per level2
Connectable conductor cross section solid-core0.08 - 1.5mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Type of electrical connection 1Spring clamp connection
Rated voltage500V
Material insulation bodyOther
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 1.5mm²
Suitable for conductor materialAluminium/copper
Type of electrical connection 2Spring clamp connection
Operating temperature-60 - 110°C
Depth36.5mm
Height48.5mm
Width4.2mm
ColourGrey
Closing plate requiredYes
Internally connected stagesYes
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'Yes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
3031076 | ST 1,5
