Details
- •Terminal blocks

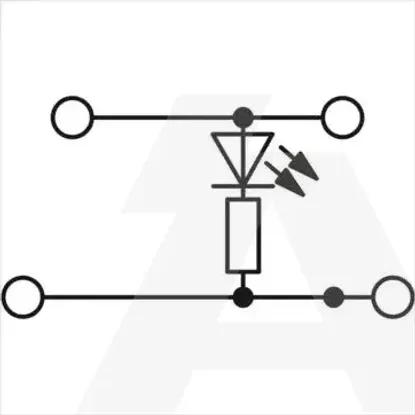

- •Component terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Rated current In22A
Rated voltage250V
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
Number of levels2
Type of electrical connection 1Spring clamp connection
Material insulation bodyOther
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Type of electrical connection 2Spring clamp connection
Width5.2mm
Internally connected stagesNo
Connectable conductor cross section solid-core0.08 - 4mm²
ColourGrey
Depth47.5mm
Height67.5mm
Closing plate requiredYes
Number of clamp positions per level2
Inflammability class of insulation material according to with UL94V0
Mounting methodDIN rail (top hat rail) 35 mm
