Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Rated voltage1000V
Type of electrical connection 1Screw connection
Rated current In24A
Type of electrical connection 2Screw connection
Connectable conductor cross section solid-core0.14 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Inflammability class of insulation material according to with UL94V0
Width5.2mm
Height47.7mm
Depth46.9mm
Operating temperature-60 - 110°C
Material insulation bodyOther
Suitable for conductor materialAluminium/copper
ColourGrey
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section multi-wired0.14 - 1.5mm²
Closing plate requiredYes
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Internally connected stagesYes
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

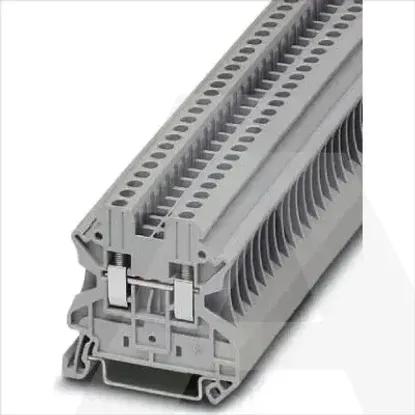

3044076 | UT 2,5
