Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section solid-core0.14 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Rated voltage1000V
Rated current In24A
Connectable conductor cross section multi-wired0.14 - 1.5mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Suitable for conductor materialAluminium/copper
Type of electrical connection 2Screw connection
Mounting methodDIN rail (top hat rail) 35 mm
Number of clamp positions per level2
Height47.7mm
Material insulation bodyOther
Operating temperature-60 - 110°C
Width5.2mm
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Depth46.9mm
Explosion-tested version 'Ex e'Yes
Type of electrical connection 1Screw connection
ColourBlue
Internally connected stagesYes
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

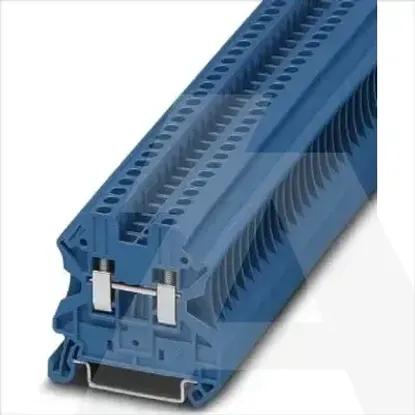

3044089 | UT 2,5 BU
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- PHOENIX
DetailsTechnical specificationsRelated productsRecommended productsFrom same serie
Technical specifications
Connectable conductor cross section solid-core
0.14 .. 4mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 4mm²
Rated voltage
1000V
Rated current In
24A
Connectable conductor cross section multi-wired
0.14 .. 1.5mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14 .. 0.14mm²
Suitable for conductor material
Aluminium/copper
Type of electrical connection 2
Screw connection
Mounting method
DIN rail (top hat rail) 35 mm
Number of clamp positions per level
2
Height
47.7mm
Material insulation body
Other
Operating temperature
-60 .. 110°C
Width
5.2mm
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Depth
46.9mm
Explosion-tested version 'Ex e'
Type of electrical connection 1
Screw connection
Colour
Blue
Internally connected stages
From same serie
Related products
Recommended products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
