Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve0.25 - 0.25mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Inflammability class of insulation material according to with UL94V0
Operating temperature-60 - 110°C
Suitable for conductor materialAluminium/copper
Connectable conductor cross section solid-core0.14 - 6mm²
Depth46.9mm
Connectable conductor cross section multi-wired0.14 - 1.5mm²
Closing plate requiredYes
Height47.7mm
Explosion-tested version 'Ex e'Yes
Internally connected stagesYes
Width6.2mm
Rated current In32A
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Type of electrical connection 1Screw connection
Material insulation bodyThermoplastic
ColourGrey
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

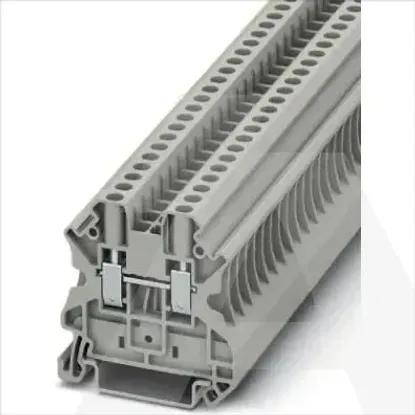

3044102 | UT 4
