Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Type of electrical connection 1Screw connection
Width6.2mm
Operating temperature-60 - 110°C
Connectable conductor cross section fine-strand with cable end sleeve0.25 - 0.25mm²
Mounting methodDIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core0.14 - 6mm²
Type of electrical connection 2Screw connection
Number of clamp positions per level2
Material insulation bodyOther
Inflammability class of insulation material according to with UL94V0
Suitable for conductor materialAluminium/copper
Depth46.9mm
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Height47.7mm
Rated current In32A
Rated voltage1000V
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
Connectable conductor cross section multi-wired0.14 - 1.5mm²
ColourBlue
Internally connected stagesYes
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

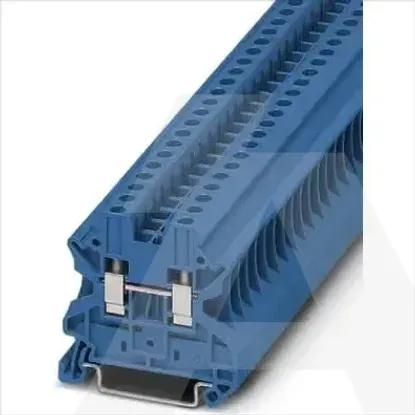

3044115 | UT 4 BU
