Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25 - 0.25mm²
Connectable conductor cross section solid-core0.2 - 10mm²
Height47.7mm
Depth46.9mm
Connectable conductor cross section multi-wired0.2 - 2.5mm²
Operating temperature-60 - 110°C
Inflammability class of insulation material according to with UL94V0
Material insulation bodyOther
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
Suitable for conductor materialAluminium/copper
Internally connected stagesYes
Width8.2mm
Rated voltage1000V
Rated current In41A
Type of electrical connection 1Screw connection
Mounting methodDIN rail (top hat rail) 35 mm
Number of clamp positions per level2
Type of electrical connection 2Screw connection
Number of levels1
ColourGrey
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

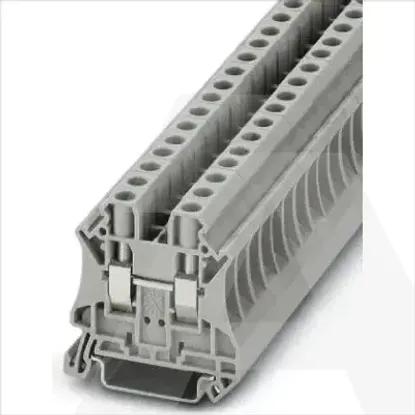

3044131 | UT 6
