Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •PHOENIX
Technical specifications
Type of electrical connection 2Screw connection
Rated current In57A
Type of electrical connection 1Screw connection
Rated voltage1000V
Connectable conductor cross section multi-wired0.5 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 16mm²
Suitable for conductor materialAluminium/copper
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Connectable conductor cross section solid-core0.5 - 16mm²
Number of clamp positions per level2
Closing plate requiredYes
Explosion-tested version 'Ex e'Yes
ColourGrey
Material insulation bodyOther
Inflammability class of insulation material according to with UL94V0
Operating temperature-60 - 110°C
Depth46.9mm
Height47.7mm
Mounting methodDIN rail (top hat rail) 35 mm
Width10.2mm
Internally connected stagesYes
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

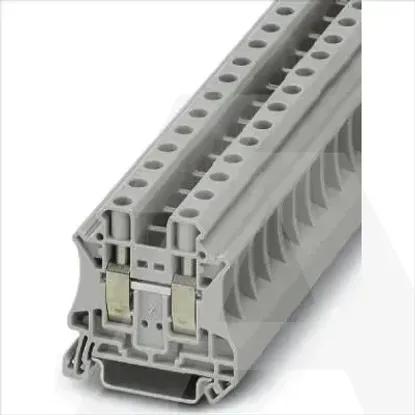

3044160 | UT 10
