Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 16mm²
Connectable conductor cross section multi-wired0.5 - 4mm²
Inflammability class of insulation material according to with UL94V0
Height47.7mm
Explosion-tested version 'Ex e'Yes
Operating temperature-60 - 110°C
Closing plate requiredYes
Width10.2mm
Suitable for conductor materialAluminium/copper
Depth46.9mm
Internally connected stagesYes
Type of electrical connection 1Screw connection
Number of levels1
Type of electrical connection 2Screw connection
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
ColourBlue
Rated voltage1000V
Connectable conductor cross section solid-core0.5 - 16mm²
Rated current In57A
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

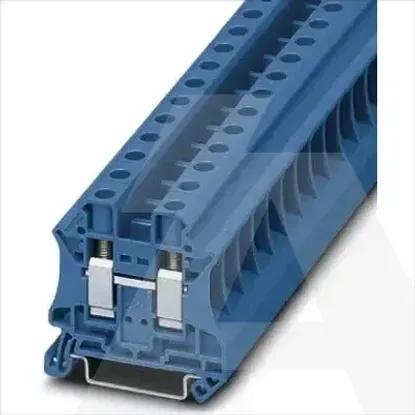

3044188 | UT 10 BU
