Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve1 - 1mm²
Connectable conductor cross section multi-wired1 - 6mm²
Type of electrical connection 1Screw connection
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 25mm²
Mounting methodDIN rail (top hat rail) 35 mm
Suitable for conductor materialAluminium/copper
Material insulation bodyOther
Operating temperature-60 - 110°C
Closing plate requiredYes
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'Yes
Type of electrical connection 2Screw connection
ColourGrey
Width12.2mm
Connectable conductor cross section solid-core1.5 - 25mm²
Depth54.4mm
Number of clamp positions per level2
Height55.5mm
Internally connected stagesYes
Rated voltage1000V
Rated current In76A
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

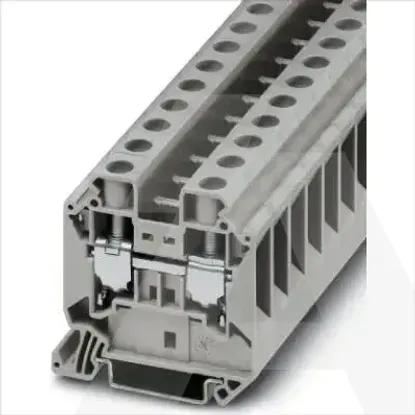

3044199 | UT 16
