Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 50mm²
Connectable conductor cross section multi-wired1.5 - 16mm²
Connectable conductor cross section solid-core1.5 - 50mm²
Suitable for conductor materialAluminium/copper
Depth65.1mm
Number of clamp positions per level2
Height61.2mm
Operating temperature-60 - 110°C
Explosion-tested version 'Ex e'Yes
Closing plate requiredNo
Inflammability class of insulation material according to with UL94V0
Internally connected stagesYes
Number of levels1
Rated voltage1000V
Type of electrical connection 2Screw connection
Type of electrical connection 1Screw connection
Rated current In125A
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
ColourGrey
Width16mm
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

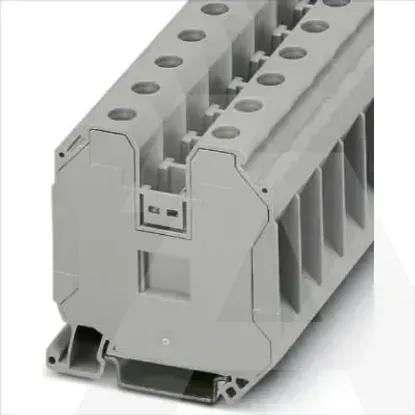

3044225 | UT 35
