Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Type of electrical connection 2Screw connection
Type of electrical connection 1Screw connection
Connectable conductor cross section solid-core0.14 - 6mm²
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
Material insulation bodyOther
Depth65mm
Height69.9mm
Connectable conductor cross section multi-wired0.14 - 1.5mm²
Inflammability class of insulation material according to with UL94V0
ColourGrey
Internally connected stagesNo
Width6.2mm
Rated voltage800V
Number of levels2
Rated current In30A
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

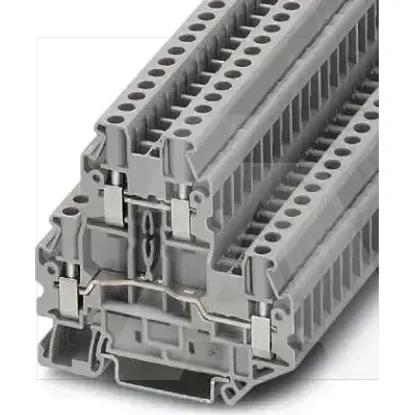

3044814 | UTTB 4
